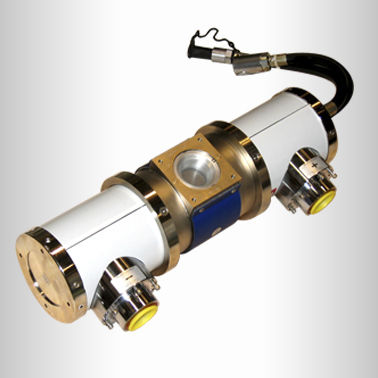

Bipolar X-ray tube TSD320/0

The TSD320/0 is the first tube of the Bipolar range. This tube has a big amount of power available and is designed for medium to heavy walled steel thicknesses applications. Driven by the adequate generator it can also be used in light alloys and composites materials. With a power of up to 4 kW on the large filament this tube helps you reducing your film exposures durations or achieve superior thicknesses in reduced times. The second filament will provide an alternative for higher definition radiographies or radioscopic applications. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the two HV plug cones are R24. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
