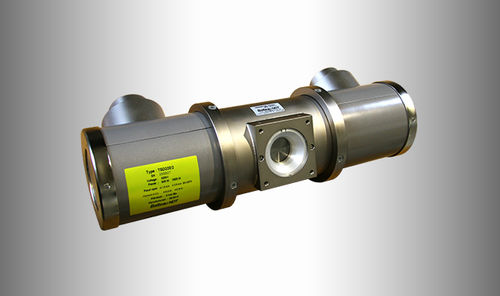

Directional X-ray tube TSD320/2

The TSD320/2 is a compromise of power and small size filaments. If the need of power is lower than 1,6 kW, this tube will help you gaining definition in medium to heavy walled applications. Equipped with two independent filaments, this tube allows you to drive up to 1,6 kW on the large filament while the small size filament will give you enough power to perform the majority of higher definition applications even at 320 kV. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the two HV plug cones are R24. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
