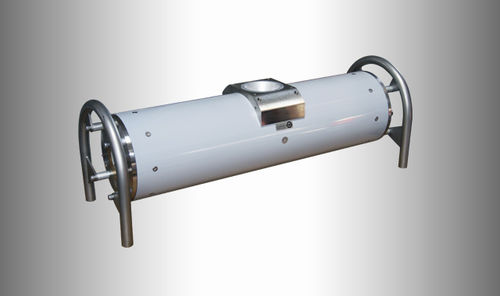

High-power X-ray tube TSD 450-2

high-power X-ray tube
high-power X-ray tube
Add to favorites
Compare this product


Characteristics

Options
high-power

Description

The TSD450/2 is introducing the series of the highest powerful tubes manufactured by BALTEAU. This tube doesn′t offer a compromise to power neither to flexibility but is designed for heavy walled and highly absorbing applications mainly. Two independent filaments are giving the possibility to perform inspections up to 1,5 kW on the large filament. Thanks to its beryllium window this tube also delivers soft X-rays for light materials or improved radiographic techniques. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the two HV plug cones are R28. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
