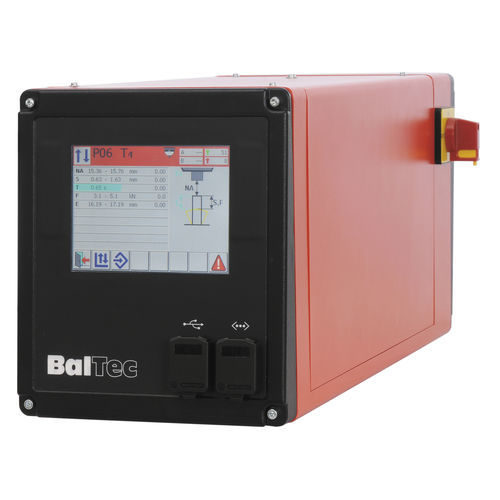

Process controller HPP-25

Model HPP-25 Process control Yes Width 232.00 mm Depth 582.00 mm Height 319.00 mm Can be combined with all pneumatic and hydraulic BalTec riveting and roller forming units as well as riveting and roller forming machines of the forming processes radial, orbital, roller forming (Exception: Double riveting machines RND, riveting machine RN(E) 081 and work cells) Standard Version ▪ All hardware based on semiconductor technology ▪ All connections on the back side via quick disconnect ▪ 6 different control criteria, 5 counter functions, memory for 63 riveting programs ▪ 45 different riveting modes are possible, including projection measurement and control to formed head height H (requires NHE-H) ▪ Up- / Download of parameter and riveting programs ▪ Download of process data and process curves via ethernet or USB ▪ Alarm-history download via USB ▪ Graphical display of riveting force and distance curve Including ▪ Mini SD card serves as storage for logger data (2 GB) ▪ Connection for distance and force sensor installed (includes X1, X2, X3, X20, X21) ▪ Ethernet port for data export via UDP protocol (Industry 4.0, MES) ▪ USB port ▪ User manual in the language of destination Options ▪ HPP-X4.01, connection incl. two hand relay for two hand switch, emergency stop ▪ HPP-X4.02, connection for emergency stop (w/o two hand control) ▪ HPP-X5.01*, connection for PVM module for pressure control valve, output 4-20 mA (for 151-331) ▪ HPP-X5.02*, connection for PVM module, output 0-700 mA (for 481) ▪ HPP-X6-01, connection for external safety/reset ▪ HPP-X7.01, connection for sliding table, sensor/actor box, 4 connections, PLC interface, control box
