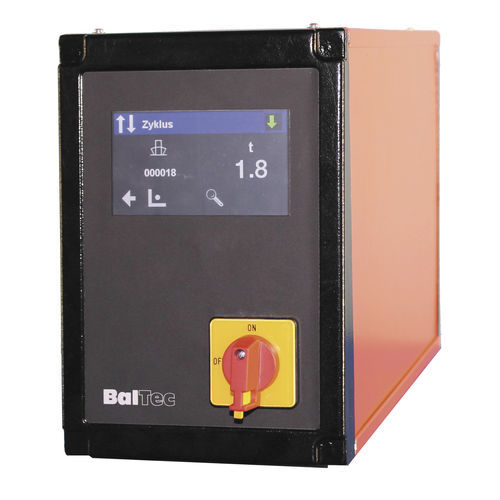

Process control system RC-30

pneumaticanalogautomatic

Model RC-30 Process control No Width 160.00 mm Depth 459.00 mm Height 230.00 mm For combination with all pneumatic and hydraulic BalTec riveting units and riveting machines of the forming processes radial, (Exception: Work cells) Standard Version ▪ All hardware based on semiconductor technology ▪ All connections on the back side via quick disconnect ▪ Stroke / hour counter resetable (total stroke / total hour counter not resetable) Including ▪ RC3-X1-01, connection for proximity sensor TDC and pneumatic valve up/down ▪ RC3-X2-01, connection for override proxi-mity sensor external reset and foot switch ▪ RC3-X3-01, connection for automatic lubrication (lubrication unit not included) and work light (24 VDC) ▪ Control Software on SD card – SW updates possible via SD card ▪ User manual in the language of destination Options ▪ RC3-X4-01, connection with integrated two hand relay for two hand switch ▪ RC3-X4-02, connection for emergency stop (w/out two hand switch) ▪ RC3-X4-05, connection for pneumatic sliding table (to load position or to work position) ▪ RC3-X5-01*, connection for valve fast approach / slow working speed incl. PVM analog output module 0-700 mA (for 481) ▪ RC3-X5-02*, connection for valve fast approach / slow working speed incl. analog module with 4-20 mA output (proportional pressure valve) (for 151-331) ▪ RC3-X5-03, connection for valve fast approach / slow working speed w/o analog output module ▪ RC3-X5-04, connection Mycom switch for NHE-E ▪ RC3-X6-01, connection external safety/ reset
