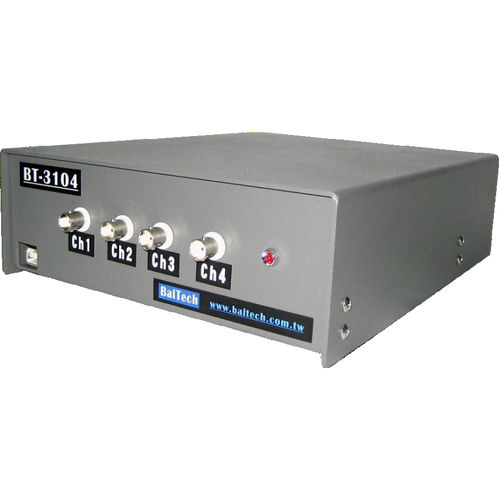

Balancing vibration meter BT-3104

Balancing vibration meter - BT-3104 - BalTech Co. Ltd.
Balancing vibration meter - BT-3104 - BalTech Co. Ltd.
Add to favorites
Compare this product


Characteristics

Applications
for balancing

Description

FEATURES: •Best weapon to replace human feel •Double Fans - Vibration Tester •Radial/axial/total vibration detect •Segmented Frequency Q.C. •Bar code record / e-Tracing •Nature Frequency Measuring •SPC Report /Online Database •Applicable AC/DC fan/motor •Go/NoGo automatically decision BT-3104 Q.C. System Specifications Dimension ( Lx W x H)140mm x 130mm x 120mm Weight of Signal Box <12 Kg Signal Input ConnectorBNC x 4 Coupling Input interfaceIEPE (24V @ 4mA) x 4 Vibration Input Range 0.00 - 50.00 G (@100mV/G) Frequency Range 0 - 12.8K Hz (max.) No of Channels 4 channels ( 2ch for each fan) Sensor error detectionOpen or short Maximal Cable length < 100 CM (max.) Shielding Signal CableCoaxial cable ( BNC to BNC) x 4 Relay Output InterfaceDC 48V/3A or AC220V/1A Running Indicator Red flashing LED Controller connection typeUSB 3.0 Plug and Play Push Button X 2 (for dual fans) Power Requirements AC100 - 230V (Single phase , 50 or 60Hz) Power consumption < 30 Watt. Power Core Three wires (L + N + Grounding) Environmental temperature10- 60 degree C Environmental humidity25% - 80%

Catalogs

BT-3104
BT-3104
2 Pages
