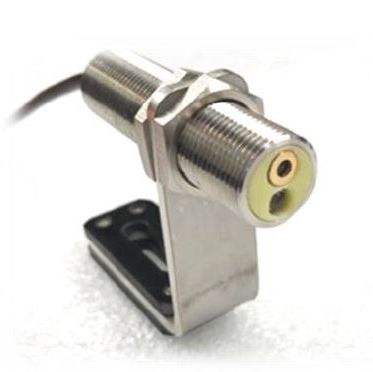

Rotational speed sensor LRS-03

laser

Visible red laser (Class Ilia) source Green LED on-target indicator Measure speeds from 1 - 200,000 RPM Measure range up to 2 m and 45 degree No need to perform any adjustment Very easy to aiming the targer Insulated L-board to avoid the interference LRS-03 Laser RPM Sensor Specifications Speed Range 1 - 200,000 RPM Illumination Visible Red Laser (Class Ilia) On-Target IndicatorGreen LED on wire end cap Power Requirement5.0 Vdc @ 30mA Output Signal Positive pulse input voltage (0 to V+) Operating RangeUp to 2m and 45 degree offset from target Operating Temp -10~+40°C Cable length 3m LRS-03 Laser RPM Sensor Dimensions Wire Color Function Red V+ Yellow Signal (0 to +V Pulse) Black GND White N/C Blue N/C Green N/C
