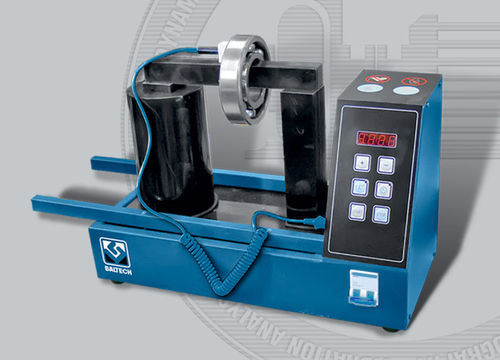

Bearing induction heater BALTECH HI-1630

230 V

BALTECH HI-1630 is small in size and can provide high performance due to its light weight. It is a cost effective induction heater with an electronic control. It is easy to mount with the rolling element bearings. It is a multi-purpose and popular model for repair of manufacturing equipment and technical services. The induction heating can be performed in the vertical and horizontal direction. Electronic indication makes it easy to configure according to the required heating temperature. The heating process may take several minutes and after approaching the defined temperature, automatic demagnetization of frenzied bearings and parts occurs. The weight of compact induction heater is 25 kg and the weight of intended heat parts is almost 55 kg with 480 mm maximum outer diameter. An inner ring is required to heat for fast and reliable bearing mounting. Keep it in mind that a closed bearing with oil should be kept away from heat, because the oil will flow out and the bearing will go dry. The bearing mounting with the induction heater BALTECH HI-1630 is managed by a microprocessor and temperature sensor.
