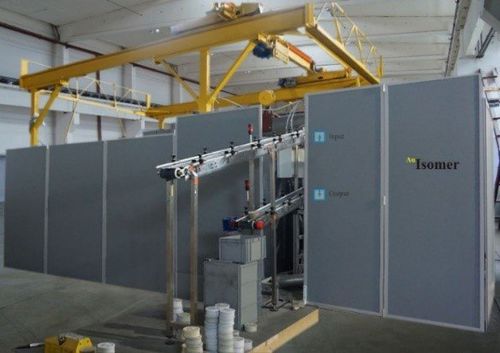

Gold analyzer Isomer

for the mining industryconcentrationspectrometer

Gold detection limit achieved at the Au-Isomer facility with a single irradiation of certified low-background samples, was 0.017 - 0.019 g/t! Application Gamma activation analysis (GAA) is an irradiation of large-mass ore samples (300-500 g) with high-energy gamma quanta, generated by linear electron accelerator (LINAC), followed by recording the induced activity of excited gold nuclei (isomers) using a gamma spectrometer. Features The ability to analyze large ore samples with a volume of 300-500 cm^3; Feasibility to analyze ore particles with sizes up to 3.0 mm, due to high penetrating power of gamma radiation; Analysis duration does not exceed 20-30 s, thanks to short half-life of excited gold nuclei; High representativeness of GAA in comparison with chemical analysis; Guaranteed high sensitivity and accuracy of analysis; High analysis selectivity, due to using large-area high-resolution semiconductor detectors; High productivity of analysis (up to 1000 analyzes per day); Non-destructive nature of analysis, thereby the analysis can be repeated many times; Analysis results practically do not depend on chemical composition of a sample; Induced activity of the sample decreases to background levels in several minutes after the analysis is finished; The ability to analyze other elements simultaneously with gold (Ag, Cu, Se, Br, Ba, Y, Pb, Hf, W, etc.).
