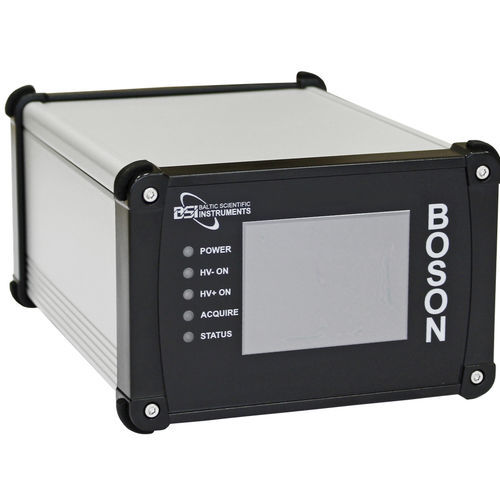

Gas analyzer Boson

radiationspectrometerdigital

Features • - Boson MCA acquires and displays spectra with overlapping by energy range up to 1000 times • - No resolution deterioration at operation in the beginning of spectrum energy range • - Stable operation with preamplifiers of TPR type with output voltage swing up to +/- 10 V and reset duration up to 250 us • - Automated P/Z adjustment • - Improved dead time correction • - Spectrum stabilization • - Setting and control of all parameters using colour LCD display with touch screen • - Complete remote control of Boson MCA via software from PC • - Dead time correction • - Base Line Restorer (BLR) • - Operation with preamplifier TPR • - Built-in oscilloscope COMPLETE SET • - Boson MCA with software • - Color LCD display with touchscreen • - HV power supply unit • - Preamplifier power supply unit (+/-12 V; +/-24 V) • - MCA state display indicator • - Connectors: input; protection control output analogue and digital. Available interface to connect to computer: USB, LAN, RS-232. Connector for preamplifier power supply unit. Two HV connectors for detector HV power supply. GATE signal connector. Outer power supply connector. • - AC/DC adaptor • - Boson MCA has control for all operation modes by the program installed in remote computer DESCRIPTION All settings are saved in spectrometer memory in case of power supply disconnection.
