Humidity test chamber BL762 series

climatictemperaturestability

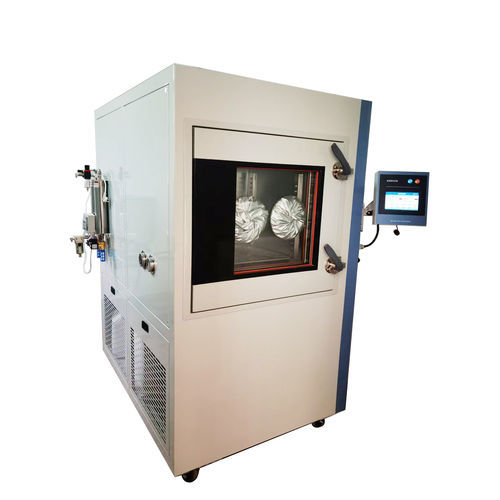

Uniformity ±0.2%RH and ± 0.1℃ Stability ±0.1%RH and ± 0.02℃ Range 5~95%RH, -30 to 80℃ The BL762 humidity calibration chamber is a vertical temperature and humidity generator that supports large calibration equipment. This unit features a temperature-controlled door, which is designed to maintain internal temperature and remain unchanged due to outside ambient temperature changes. The chamber temperature is controlled by a Peltier heat pump arrangement for maximum stability and minimum temperature gradient. The saturator assembly can be filled easily and can be recycled by heating when required. FEATURES • 5-95%RH humidity @ 20℃ • Dew point is low to -60℃ DP. • Stability is ±0.1%RH and ± 0.02℃ • Uniformity is ±0.2%RH and ± 0.1℃ • Rapid humidity and temperaturestabilization time, much faster than traditional two-pressure generator. • 125L effective work volume • Touch screen operation APPLICATION • Humidity calibration laboratory • Humidity test workshops
