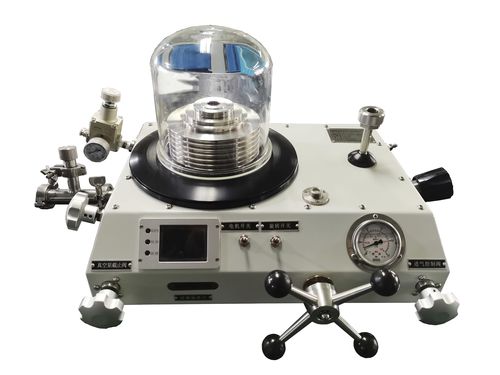

Absolute pressure gauge BL503 series

analogstainless steelpiston type

The gas operated BL503 absolute pressure piston gauges as primary standards for absolute pressure and gauge pressure, with emphasis on obtaining the effective area from the piston cylinder dimensions and the mass in vacuum of the pressure balance floating element. It is designed to enable metrology and research institutes to realize and disseminate exceptional fundamental pressure measurements. FEATURES • 0.005% of reading accuracy • Pressure ranges is up to 20MPa • Three different piston cylinder units can be exchanged for different pressure • 20kg mass set or optional 40kg mass set • Build-in motor to rotate the mass set • With dial piston position indicator • PT100 shows the piston temperature • Pirani vacuum gauge can accurately measure residual vacuum in bell jar. • The aluminum alloy base that has been processed as a whole ensures the assembly accuracy and operational flexibility of the system • All internal pressure fittings are made of stainless steel material to avoid rusting of key sealing components and frequent equipment maintenance APPLICATION • Primary pressure standard in lab • Reference pressure measure in workshop
