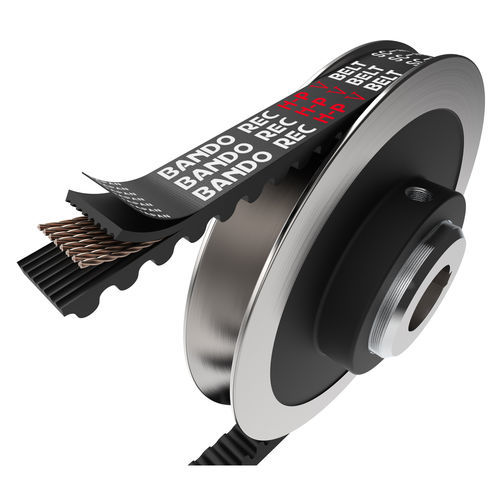

V belt H-PV

rubberfabricmachine

High-performance raw edge cogged V-belt that can handle higher horsepower of agricultural machinery Thin-molded, low-edge cog belt that can accommodate the higher horsepower of agricultural machinery. The cog shape provides superior flex durability, resulting in less bending loss and longer life. It can also be used with smaller pulley diameters or reverse bends. Features The exposed rubber on the side face has a high coefficient of friction and high transmission capacity. In addition, the reinforcing fibers have been improved to enhance side pressure resistance and can be used for large-mold agricultural machinery. The cog shape (corrugated bottom face) and specially woven canvas provide excellent flexibility for small pulley diameters and reverse bends. In addition, bending loss is reduced, internal heat generation is reduced, and service life is improved. Structural differences between wrapped V Belts and raw edge cog belts [Wrapped V Belts Both the side face and bottom face are covered with canvas for excellent abrasion resistance. It allows smooth transmission of power. It also helps protect the machine. Structure: (1) cover fabric, (2) tension rubber, (3) cord, (4) compression rubber, (5) laminated fabric [Low edge cog belt]. The side face has exposed rubber for high transmission. The power from the motor is transmitted firmly. Often used around drive units. Structure: (1) top fabric, (2) tension rubber, (3) cord, (4) compression rubber, (5) bottom fabric
