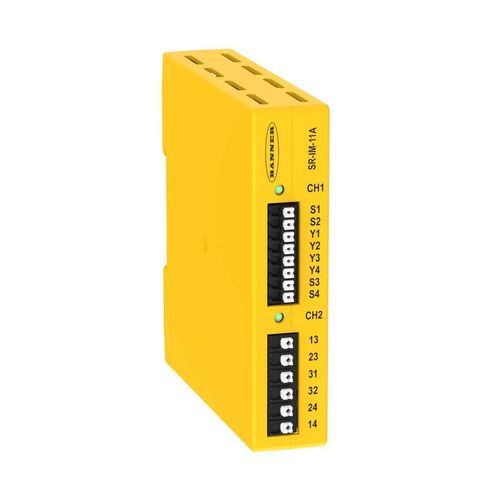

Safety relay SR-IM

for light curtainDIN railIEC

Cost-effective interface modules providing isolated safety output contacts for safety light curtains or similar primary safety devices with OSSD solid-state or hard contact outputs and external device monitoring (EDM) capability. -Clearly labeled, front facing push-in style spring clamp terminals -Can be used to expand the available outputs of a safety controller and increase the switching current capacity of low voltage safety devices to 6 amps -Models available with three normally open (NO) safety outputs or two normally open (NO) safety outputs and one normally closed (NC) non-safety auxiliary output -22.5 mm (0.9 inch) DIN-rail-mountable housing -Achieves up to SIL 3 (IEC 61508/IEC 62061) and Category 4, PLe (EN ISO 13849-1) -20 millisecond maximum response time -24 V dc operation
