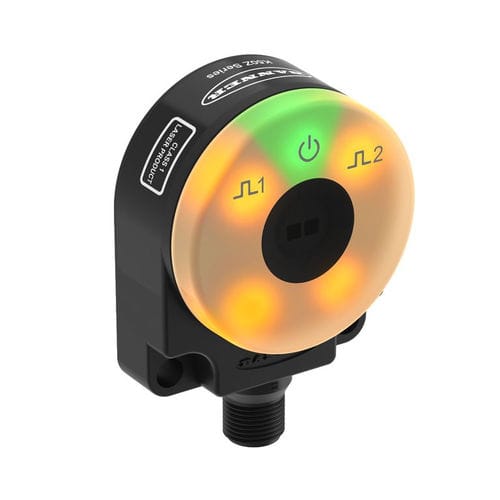

Presence detector K50Z

time-of-flight3Dindustrial

Instead of employing multiple single-point sensors, the K50Z Multipoint Sensor uses 3D time of flight technology and a wide beam angle to detect objects up to 2 meters away across an 8 x 8 pixel array. It can also be configured to measure two separate areas, effectively doing the work of two sensors in one convenient device. Detect more reliably across a wide area 45 x 45 degree beam angle and 2-meter range allow for detection in a large area 64 measurement points can capture the nearest distance and average height over a large area, yielding more information than a single sensor 3D time of flight technology measures angled targets more reliably than other methods, including ultrasonic Use less hardware and save commissioning time Two independently configured outputs let operators monitor two separate areas Less hardware is required by replacing two sensors with one Customize configuration with intuitive Banner Measurement Sensor Software
