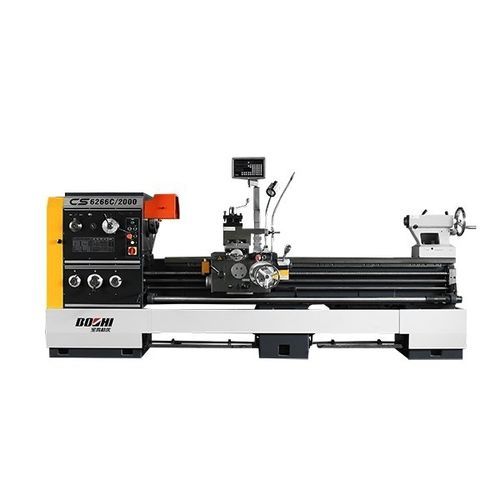

Conventional lathe CS61/6266Chorizontal2-axis4 tools
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Applications
- drilling
- Associated function
- boring
- Diameter
660 mm
(25.98 in)- Spindle speed
Min.: 32 rpm
(201.062 rad.min-1)Max.: 1,600 rpm
(10,053.096 rad.min-1)- Maximum part length
1,000 mm, 1,500 mm, 2,000 mm, 3,000 mm
(39 in, 59 in, 79 in, 118 in)- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
2,632 mm, 3,132 mm, 3,632 mm, 4,632 mm
(104 in, 123 in, 143 in, 182 in)- Overall width
975 mm
(38 in)- Overall height
1,450 mm
(57 in)- Weight
2,200 kg, 2,400 kg, 2,600 kg, 3,000 kg
(4,850 lb, 5,291 lb, 5,732 lb, 6,614 lb)
Description
Spindle Thru-hole:
105mm
Machine bed width:
390mm
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Machine all kinds of flat stocks and those in irregular shapes;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Accessories
² 3-jaw chuck and adapter
² 4-jaw chuck and adapter
² 4-station conventional tool post
² Drive plate
² Faceplate
² Steady rest
² Follow rest
² The Full-longitudinal chip guard (Movable type for 3000mm)
² LED work lamp
² Dead center and center sleeve
² Spanner
² Hook spanner
² Oil gun
Optional
² Live Center
² Thread chasing dial
² Mechanical feed stop
² Single set feed stop
² Quick change tool post（American /Italy/European type）
² Chuck guard
² Tool-post guard
² Taper turning attachment
² Digital readout（2/3 AXIS）
² Siemens electrical appliances
² Quick release
² Screw protection
