Conventional lathe CS61/6250B
horizontal2-axis4 tools

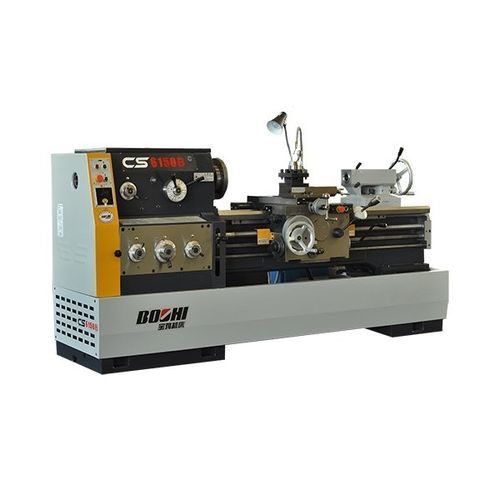

Conventional lathe - CS61/6250B - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / 4 tools
Conventional lathe - CS61/6250B - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / 4 tools
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Number of tool stations
4 tools
Applications
drilling
Associated function
boring
Diameter

500 mm
(19.69 in)

Spindle speed

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Min.: 9 rpm
(56.549 rad.min-1)

Maximum part length

1,000 mm, 1,500 mm, 2,000 mm, 3,000 mm
(39 in, 59 in, 79 in, 118 in)

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

2,632 mm, 3,132 mm, 3,632 mm, 4,632 mm
(104 in, 123 in, 143 in, 182 in)

Overall width

975 mm
(38 in)

Overall height

1,230 mm
(48 in)

Weight

2,100 kg, 2,300 kg, 2,500 kg, 2,900 kg
(4,630 lb, 5,071 lb, 5,512 lb, 6,393 lb)

Description

Spindle Thru-hole: 82mm Machine bed width: 390mm 　　—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; 　　—Threading Inch, Metric, Module and D.P.; 　　—Machine all kinds of flat stocks and those in irregular shapes; 　　—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; 　　—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries; 　　—There are hand brake and foot brake for users to choose; 　　—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz). Accessories ² 3-jaw chuck and adapter ² 4-jaw chuck and adapter ² 4-station conventional tool post ² Drive plate ² Faceplate ² Steady rest ² Follow rest ² The Full-longitudinal chip guard (Movable type for 3000mm) ² LED work lamp ² Dead center and center sleeve ² Spanner ² Hook spanner ² Oil gun Optional ² Live Center ² Thread chasing dial ² Mechanical feed stop ² Single set feed stop ² Quick change tool post（American /Italy/European type） ² Chuck guard ² Tool-post guard ² Taper turning attachment ² Digital readout（2/3 AXIS） ² Siemens electrical appliances ² Quick release ² Screw protection
