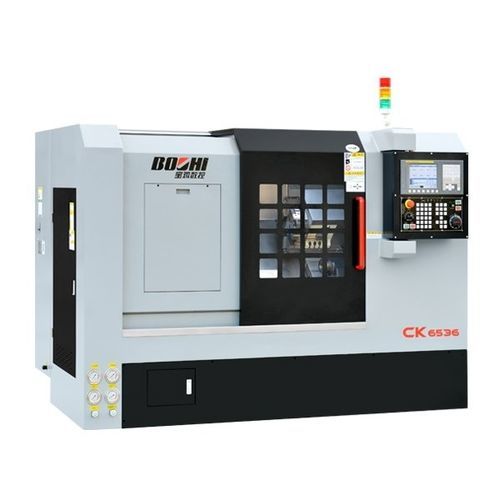

CNC lathe CK6536 horizontal2-axisA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Number of tool stations
- 8 tools
- Other characteristics
- high-precision, high-rigidity
- Diameter
200 mm, 400 mm
(7.87 in, 15.75 in)- Spindle speed
3,500 rpm
(21,991.149 rad.min-1)- Maximum cutting diameter
360 mm
(14 in)- Maximum cutting length
330 mm
(13 in)- Bar capacity
42 mm
(2 in)- Axe X
190 mm
(7 in)- Axe Z
350 mm
(14 in)- Rapids on X
16 m/min
- Rapids on Z
18 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Maximum torque
48 Nm, 70 Nm
(35 ft.lb, 52 ft.lb)- Overall lenght
2,370 mm
(93 in)- Overall width
1,662 mm
(65 in)- Overall height
2,055 mm
(81 in)- Weight
2,500 kg, 3,050 kg
(5,512 lb, 6,724 lb)
Description
Unique oil and water separation structure without oil-water separator, lubricating oil can be recovered independently.
The tail seat guide rail adopts a steel sliding guide rail, the tail seat body adopts the hydraulic automatic locking, the guide and the stability are good.
Full enclosed protection, side mounted coolant tank and chip box ensure fluent chip disposal and easy remove. Transposition type operation panel is safe and convenient to operate.
Standard equipment
●FANUC Oi- TF
●Cartridge type spindle unit
●Imported high precision spindle bearing
●Servo main motor
●FANUC servo motor
●Linear way from Taiwan
●Precision ball screw from Taiwan
●Bearing especially for screw imported from Japan
●Domestic 6” hollow hydraulic rotating cylinder
●Domestic 6” holly hydraulic 3- jaw chuck
●8-station horizontal hydraulic turret from Taiwan
●Hydraulic tailstock
Optional equipment
●GSK/SYNTEC/SIEMENS system
●8-station horizontal electric tool station
●Servo main motor
●6”solid hydraulic rotating cylinder from Taiwan
●8”solid hydraulic 3-jaw chuck
●Automatic chip machine
