CNC lathe CK40
horizontal2-axisA2-5

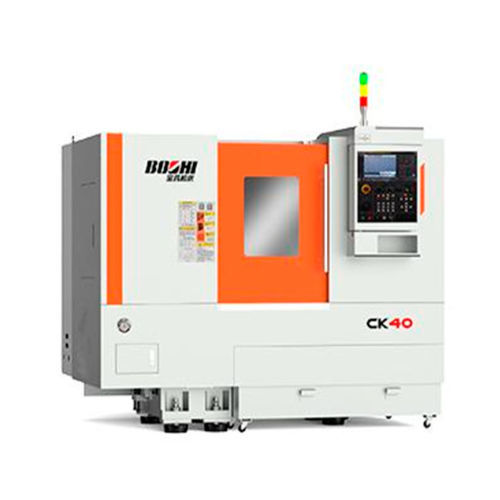

CNC lathe - CK40 - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / A2-5
CNC lathe - CK40 - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / A2-5
CNC lathe - CK40 - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / A2-5 - image - 2
CNC lathe - CK40 - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / A2-5 - image - 3
CNC lathe - CK40 - Baoji Zhongcheng Import&Export Co., Ltd. - horizontal / 2-axis / A2-5 - image - 4
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
A2-5
Number of tool stations
12 tools, 8 tools
Applications
for small workpieces
Performance
high-precision, high-performance
Diameter

260 mm, 400 mm
(10.24 in, 15.75 in)

Spindle speed

Min.: 70 rpm
(439.823 rad.min-1)

Max.: 3,000 rpm
(18,849.556 rad.min-1)

Maximum cutting diameter

285 mm
(11 in)

Maximum cutting length

400 mm
(16 in)

Bar capacity

42 mm
(2 in)

Axe X

165 mm
(6 in)

Axe Z

410 mm
(16 in)

Rapids on X

12 m/min

Rapids on Z

16 m/min

Nominal power

7.5 kW
(10.2 hp)

Overall lenght

2,370 mm
(93 in)

Overall width

1,670 mm
(66 in)

Overall height

1,970 mm
(78 in)

Weight

3,000 kg
(6,614 lb)

Description

These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
