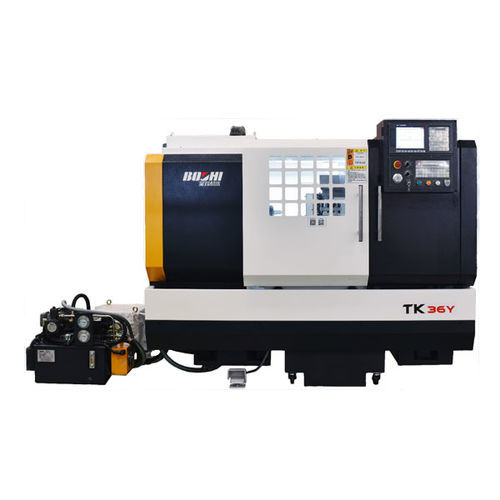

CNC lathe TK36Y horizontal3-axisflatbed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 3-axis
- Structure
- flatbed
- Spindle mount
- A2-5
- Number of tool stations
- 4 tools
- Applications
- drilling
- Performance
- high-performance
- Associated function
- milling, tapping
- Spindle speed
Min.: 140 rpm
(879.646 rad.min-1)Max.: 3,000 rpm
(18,849.556 rad.min-1)- Maximum cutting length
500 mm
(20 in)- Bar capacity
42 mm
(2 in)- Axe X
120 mm, 230 mm, 510 mm
(5 in, 9 in, 20 in)- Rapids on X
6 m/min
- Rapids on Z
8 m/min
- Nominal power
5.5 kW
(7.5 hp)- Maximum torque
83 Nm
(61 ft.lb)- Overall lenght
2,370 mm
(93 in)- Overall width
1,280 mm
(50 in)- Overall height
1,610 mm
(63 in)- Weight
1,700 kg
(3,748 lb)
Description
TK36Y is a turning and milling integrated CNC lathe specially developed for small non-ferrous metal processing. It can complete various turning functions, and well as milling, drilling, tapping and other processing of workpiece with Y-axis power unit.
Independent spindle structure, stable running, stepless speed regulation.
The separated cooling water tank is easy to maintain and clean.
Accuracy
Refer to the executive standard: GB / t25659.1-2010 simple CNC horizontal lathe Part 1: accuracy inspection.
Positioning accuracy: X/Y/Z(mm)-0.032/0.032/0.040
Repeatable positioning accuracy: X/Y/Z(mm)-0.009/0.009/0.011
Roundness / cylindricity(mm): 0.004/0.027(300mm)
