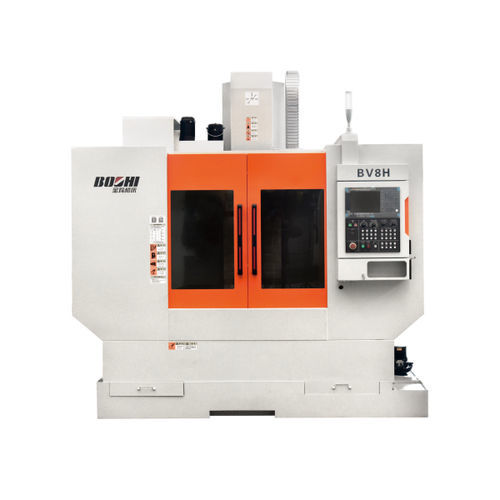

3-axis CNC machining center BV8H verticalBT 40high-speed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Other characteristics
- high-speed, high-performance, with tool changer
- X travel
800 mm
(31.5 in)- Y travel
550 mm
(21.65 in)- Z travel
550 mm
(21.65 in)- Rotational speed
8,000 rpm
(50,265 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
10,000 mm/min
(7 in/s)- Work feed Y-axis
10,000 mm/min
(7 in/s)- Work feed Z-axis
10,000 mm/min
(7 in/s)- Table load capacity
500 kg
(1,102 lb)- Weight
4,500 kg
(9,920.8 lb)- Overall length
2,650 mm
(104.3 in)- Overall width
2,280 mm
(89.8 in)- Overall height
2,900 mm
(114.2 in)
Description
Vertical machining center BV8H adopts linear guides in X Y and Z axis, no counterweight in Z axis. It features high cost-performance, light in weight, high speed, high accuracy and stability.
Beautiful and concise in full-closed design and small is footprint;
Standard Equipment
FANUC 0i MF(5) control
Linear guides in X Y and Z
Ball screws made in Taiwan
Air-conditioner for electric cabinet
Tri-color patrol light
Portable electronic handwheel
Optional Equipment
FANUC 0i MF(1) or other controls
High speed direct spindle12000r/min made in Taiwan
Spindle oil cooler
Other type of magazine BT40
