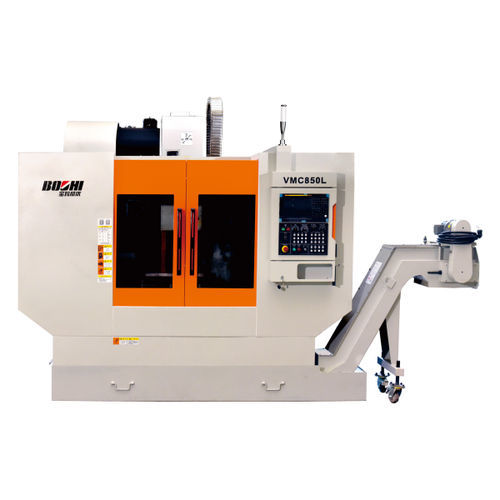

3-axis CNC machining center VMC850 seriesvertical24 tools20 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Number of tool stations
- 24 tools, 16 tools, 20 tools
- Applications
- drilling, for the automobile industry, for molds
- Other characteristics
- high-speed, milling, tapping, high-rigidity
- X travel
800 mm
(31.5 in)- Y travel
500 mm
(19.69 in)- Z travel
500 mm, 550 mm, 600 mm
(19.69 in, 21.65 in, 23.62 in)- Rotational speed
8,000 rpm, 12,000 rpm
(50,265 rad.min-1, 75,398 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
16 m/min, 24 m/min, 32 m/min, 48 m/min
- Work feed Y-axis
16 m/min, 24 m/min, 32 m/min, 48 m/min
- Work feed Z-axis
12 m/min, 15 m/min, 30 m/min, 48 m/min
- Table load capacity
450 kg, 500 kg, 600 kg
(992 lb, 1,102 lb, 1,323 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.003 mm
(0 in)- Repeatability
0.008 mm
(0 in)- Weight
5,000 kg, 5,500 kg, 6,000 kg, 6,500 kg
(11,023.11 lb, 12,125.42 lb, 13,227.74 lb, 14,330.05 lb)- Overall length
2,700 mm, 2,800 mm
(106.3 in, 110.2 in)- Overall width
2,300 mm, 2,450 mm, 2,500 mm
(90.6 in, 96.5 in, 98.4 in)- Overall height
2,630 mm, 2,650 mm, 3,050 mm
(103.5 in, 104.3 in, 120.1 in)
Description
high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range.
These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production.
Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity
Rectangular hardened sliding guideways of 3-axes.
Linear guideways are used in X and Y axes while rectangular hardened sliding guideways in Z-axes.
Linear roller ways and silence lead screws from famous makers are used for X, Y and Z axes.
