3-axis CNC machining center VMC1580
verticalISO 5024 tools

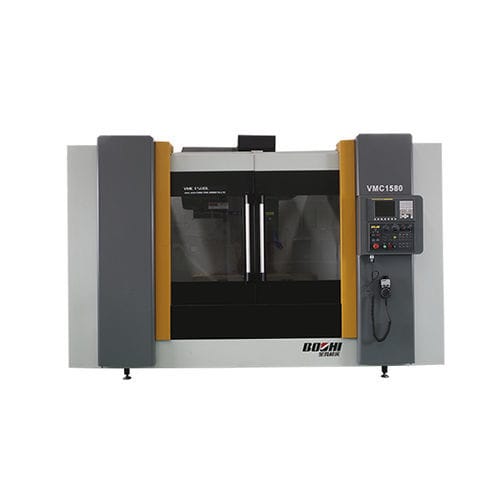

3-axis CNC machining center - VMC1580 - Baoji Zhongcheng Import&Export Co., Ltd. - vertical / ISO 50 / 24 tools
3-axis CNC machining center - VMC1580 - Baoji Zhongcheng Import&Export Co., Ltd. - vertical / ISO 50 / 24 tools
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
ISO 50
Number of tool stations
24 tools, 16 tools, 20 tools
Associated functions
milling, tapping, drilling
Applications
for molds
Other characteristics
high-speed, high-rigidity
X travel

1,500 mm
(59.06 in)

Y travel

800 mm
(31.5 in)

Z travel

700 mm
(27.56 in)

Rotational speed

7,000 rpm
(43,982 rad.min-1)

Power

15 kW, 18.5 kW
(20.39 hp, 25.15 hp)

Work feed X-axis

16 m/min

Work feed Y-axis

16 m/min

Work feed Z-axis

12 m/min

Table load capacity

1,500 kg
(3,307 lb)

Tool weight (max)

15 kg
(33.1 lb)

Positioning accuracy

0.005 mm
(0.0002 in)

Repeatability

0.01 mm
(0.00039 in)

Weight

12,500 kg, 13,000 kg
(27,557.78 lb, 28,660.09 lb)

Overall length

4,300 mm
(169.3 in)

Overall width

3,750 mm
(147.6 in)

Overall height

3,100 mm
(122 in)

Description

Rectangular hardened sliding guideways of 3-axes. Features: high rigidity, high accuracy, high speed, high efficiency, high reliability and large torque. They have a wide working range. These machines are used in automotive, motorcycle, manufacturing, sewing machine, motor and instrument industries for milling, drilling, counterboring, boring, tapping and countersinking valve-type, cam, dies/molds and plate/disk type workpieces. They are especially suitable for all sorts of complex 2D/3D convex/concave molds and complex ID/OD surfaces. They can be used for medium/small batch multi-work production or be linked into an auto line for large batch production. Using these machines can save manufacturing equipment, shorten production cycle, guarantee machining accuracy and increase productivity.
