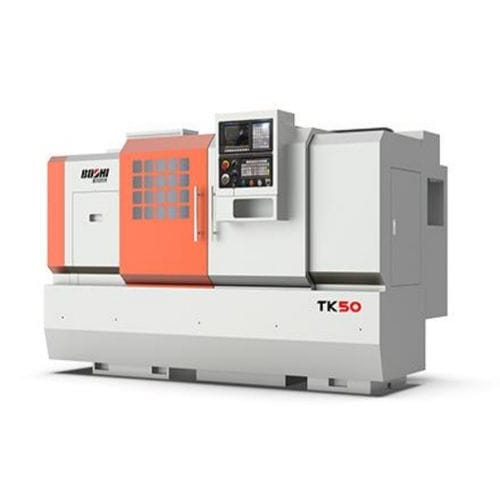

CNC lathe TK50horizontalflatbedA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Structure
- flatbed
- Spindle mount
- A2-8
- Number of tool stations
- 4 tools
- Diameter
280 mm, 500 mm
(11.02 in, 19.69 in)- Spindle speed
Max.: 2,500 rpm
(15,707.963 rad.min-1)Min.: 30 rpm
(188.496 rad.min-1)- Maximum part length
1,100 mm
(43 in)- Maximum cutting diameter
500 mm
(20 in)- Maximum cutting length
1,000 mm
(39 in)- Axe X
275 mm
(11 in)- Axe Z
1,000 mm
(39 in)- Rapids on X
6 m/min
- Rapids on Z
8 m/min
- Maximum torque
286 Nm, 354 Nm
(211 ft.lb, 261 ft.lb)
Description
TK50 is an easily-operated CNC lathe and driven by a main servo motor. This machine features an independent spindle structure and outputs infinite variable speed. Controlled by GSK control the lathe has two controllable axes. It can perform OD and ID turning, taper and arc turning, facing, metric and inch threading automatically. Suitable for chuck work and shaft work of multi-specification medium/small batches, especially those complicated and high accuracy workpieces.
