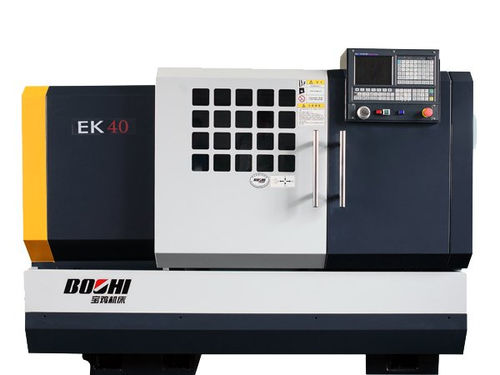

CNC lathe EK4 series verticalflatbedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Structure
- flatbed
- Spindle mount
- A2-6, A2-5
- Performance
- high-performance
- Diameter
200 mm, 400 mm
(7.87 in, 15.75 in)- Spindle speed
Max.: 3,000 rpm
(18,849.556 rad.min-1)Min.: 140 rpm
(879.646 rad.min-1)- Maximum cutting length
580 mm, 830 mm
(23 in, 33 in)- Bar capacity
57 mm
(2 in)- Axe X
230 mm
(9 in)- Axe Z
590 mm, 840 mm
(23 in, 33 in)- Rapids on X
6 m/min
- Rapids on Z
8 m/min
- Nominal power
5.5 kW
(7.5 hp)- Maximum torque
83 Nm
(61 ft.lb)- Overall lenght
2,150 mm, 2,400 mm
(85 in, 94 in)- Overall width
1,260 mm
(50 in)- Overall height
1,600 mm
(63 in)- Weight
1,700 kg, 2,100 kg
(3,748 lb, 4,630 lb)
Description
EK40 series CNC lathe is controlled by GSK control and driven by servo motors. It has two 2 controllable axes. Operations of internal and external turning, taper turning, circular surface turning, facing, inch and metric threading are performed. Standard equipment--4-station vertical tool-post meets different cutting requirements. The sliding door and a variety of caution plates guarantee operator’s safety. The lathe applies to light and manufacturing engineer industries for speedy and efficient machining of small/medium size workpieces especially nonferrous metals, or for teaching and training purposes in colleges.
