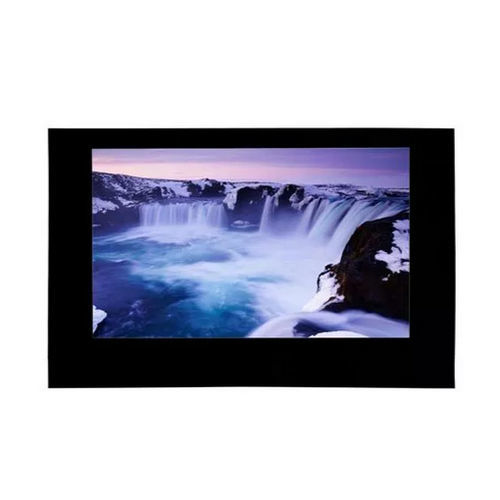

TFT LCD display module touch screendot-matrix1920 x 1200
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, touch screen
- Type
- dot-matrix
- Format
- 1920 x 1200
- Screen size
- 10.1"
- Interface
- RGB, LVDS
- Configuration/mounting
- panel-mount
Description
Size (Diagonal)
10.1 inch
Dot Matrix / Resolution
1920 × RGB × 1200 (TFT) dots
Module Dimension
229.45(H)*149.22(V)*4.7(typ) mm
Module Interface
LVDS
-
Active Area
216.8064(H)*135.504(V) mm
Dot / Pixel Pitch
0.03764(H) x RGB x 0.11292(V) mm
Brightness
600 cd/㎡
Operating Temperature
-20~+70 °C
CTP Driver IC
HY4635
