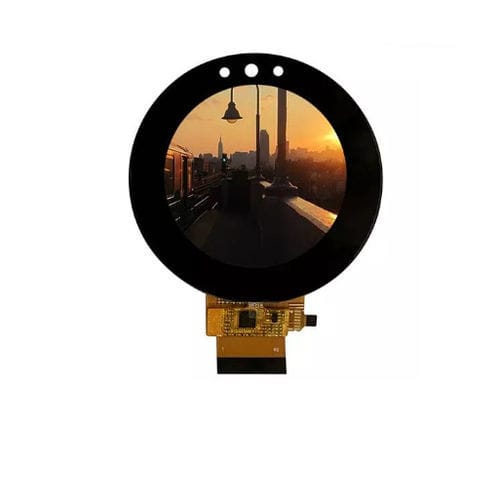

TFT LCD display module touch screendot-matrix480 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, touch screen
- Type
- dot-matrix
- Format
- 480 x 480
- Screen size
- 2.1"
- Interface
- RGB
- Structure
- round
- Configuration/mounting
- panel-mount
Description
Size (Diagonal)
2.1 inch
Dot Matrix / Resolution
480 × RGB × 480 (TFT) dots
Module Dimension
75.0(H) ×74.49 (W) × 5.19 mm
Active Area
53.28*53.28 mm
LCD Driver IC
ST7701S
-
CTP Driver IC
ATMXT308U
-
LCD Interface
RGB18-bit+SPI
-
CTP Interface
IIC
-
Operating Temperature
-20~+70 °C
