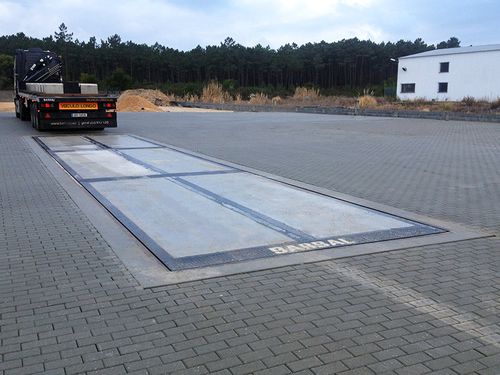

Truck weighbridge PCHB

concretesteelmodular

STEEL/CONCRETE WEIGHBRIDGE CONCRETE POURED IN FACTORY Above Ground or Pit Mounted • Dimensions from 9x3m up to 30x3m • Max. capacity/scale interval: from 10t/5kg up to 150t/50kg • Modular panels composed of IPE steel beams, electro welded mesh, metal formwork and concrete with a resistance class C30/37 (concrete poured in factory) • Height of the rolling surface: 370mm • Easy access to load cells and junction box through removable access hatches on the surface platform • Stainless steel compression load cells, self-centring rotation column IP68/IP69K digital rodent proof model TC-DC 4000d OIML R60 • As an option, analogue load cells model TC-A 4000d OIML R60 stainless steel IP68/IP69K with IP68 junction box and rodent proof cable • Finishing in industrial epoxy paint colour RAL 7021 after pickling by steel shot process or hot dip galvanisation (optional) • Suitable for an intensive usage
