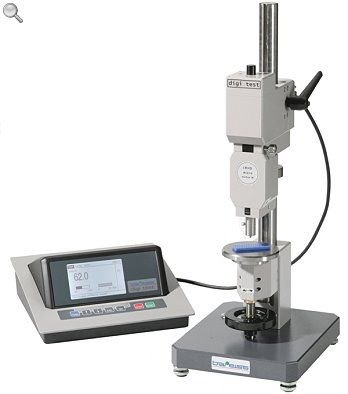

Shore indentation hardness tester digi test II

benchtopfor rubberautomatic

digi test II - a modularized tester for Shore, IRHD and VLRH The digi test II consist of 4 major components: the test stand, the loading module (pick-up bracket), the electronic unit and the interchangeable measuing unit for methods of Shore, IRHD and VLRH. The highly intelligent digi test II is equiped with an electronic unit which serves as the main control of the entire system and the display of the user's information for measuring time and method, measurement and various selectable features. Hardness testing on convex and concave surfaces Unlike the conventional hardness testers which are limited to only flat-surfaced samples measuring, the Bareiss digi test II is making hardness testing on all surfaces possible by using the automatic surface detection technology. In addition to that, we are able to customize our indenter length so that it can reach any point on the sample which is required for measuring. Standards DIN ISO 7619 / DIN ISO 48, ISO 48-2/3/4 / ASTM D 2240 / ASTM D 1415 / NF T 51-174 / NF T46-003-4 / NF T51-174 JISK 6253, DIN ISO 27588 Official DAkkS-Certificates Since 1996, Bareiss offers official DAkkS-Certificates for the exchangeable measuring devices.
