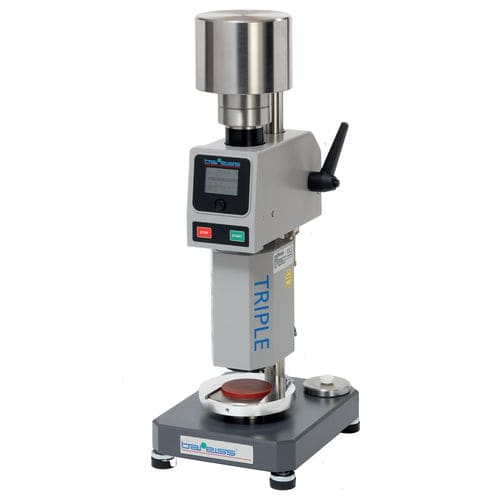

Measuring principle
Three indenters penetrate from the top surface of the sample simultaneously with a standard conformable force. Each measurement is then taken indenpently to generate three hardness values from one single operation. Samples with uneven surfaces can be compensated by individual bearing system in the device.
Advantages
Time saving
Automatic statistical evaluation (Median / Average)
Automatic error detection
Descending speed of 3.2 mm/s according to the standard
Range of application
Hardness determination on soft rubber, Elastomers, Natural rubber products, etc.
Standards
DIN ISO 7619 / DIN EN ISO 868 /
NF EN ISO 868 / ASTM D 2240 / JISK 6253
Technical Data
Memory for 300 measured values
Plug-in power supply: 100-240V; 50-60 Hz
Data output RS 232
Dimensions: LxWxH 20 x 16 x 45 cm
Weight: 13.5 kg
