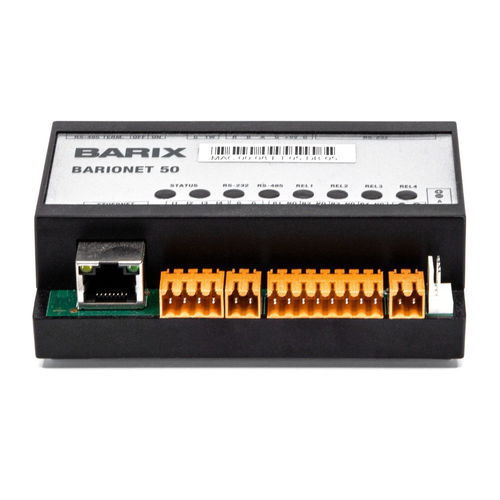

Digital I O module Barionet 50EthernetRS-485RS-232
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Bus
- Ethernet, RS-485, RS-232, Modbus, Modbus TCP
- Number of inputs/outputs
- 4 digital inputs, 4 relay outputs
- Type
- remote
- Other characteristics
- universal, programmable
Description
Two serial ports, 4 digital inputs, 4 relay outputs and Dallas 1-wire support
Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, digital I/O and Dallas 1-wire support.
• Relay Output (4x24V, 0.5A)
• Contact Closure Input (4)
• RS-232 Serial Port (1)
• RS-485 Serial Port (1)
• Supply Voltage (9-30V)
• Programable Dallas 1-Wire Interface
RS-232 (DSub-9 male, 5-wire RXD, TXD, RTS, CTS, GND), RS-485 on detachable screw terminal block as well as on 4 pin extension connector, both with serial speeds from 300 bps to 230 kbps (asynchronous)
On detachable screw terminal blocks:
4 relay outputs (30 VDC, 0.5 A)
4 digital inputs (dry contacts)
Dallas 1-Wire® interface
