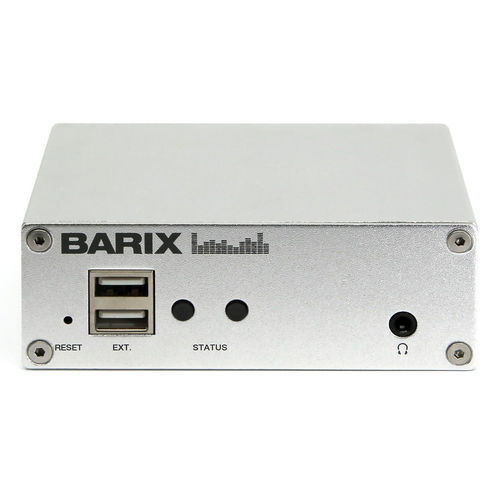

Embedded PC AudioPoint 3.0

quad-coreEthernetRJ45

• Turns a local WiFi-system into a near lip-sync network • Two channel selectable per device • No cloud synchronisation needed • Free app optimized for iOS and Android • View device OPERATION SYSTEM Embedded Linux based on Yocto NETWORK INTERFACES 1 x Ethernet (RJ45) Interface IPv4, IPv6 capable 10/100 fdx/hdx, auto negotiation PROTOCOLS TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP Singlewire InformaCast compatibility Syn-Apps Revolution compatibility AUDIO INTERFACE unbalanced L-R Line level output on RCA connectors Headphone connector on the front panel AUDIO FORMATS MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq. AAC-HE (AAC, AAC plus, AAC plus V2) PCM linear 16bit @44.1 kHz 711 Opus CPU / MEMORY Barix IPAM400 Processor Module Quad-Core ARM Cortex™ -A7 2GB DDR3 SDRAM 16MB SPI Flash 8GB SD-Card Flash USER INTERFACE Web interface for configuration 2 x Multicolor LED Status indicators Reset & Factory Defaults Button POWER REQUIREMENTS 5VDC, 10W maximum on 6.5x1.5mm barrel connector (positive polarity)
