Audio decoder 300

IPuniversal

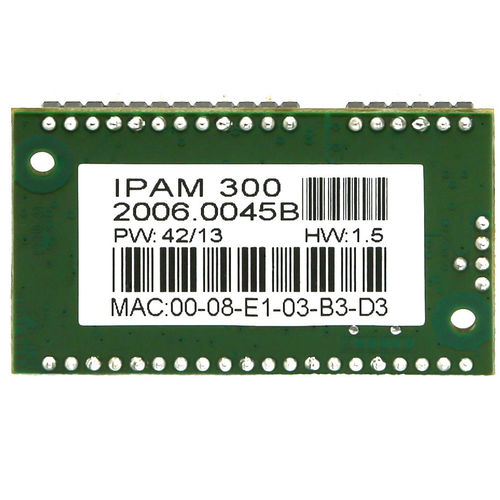

low cost version with limited feature set, one serial port, digital I/O, Decoding only, 3.3V supply The IPAM 300 is a universal, standalone, IP Audio function block which can be easily embedded into OEM products. The module decodes IP Audio streams and provides the decoded audio as a (stereo) analog or digital (I2S) feed. Supporting a vast range of protocols and codecs the module can be used for both VoIP and IP paging as well as high quality music distribution and IP music streaming applications. Control I/O (serial port, digital inputs and outputs) allow the use with UI and control interfaces. Most of the Barix Exstreamer products are based on this module. • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding • IP Streaming via TCP, UDP, RTP, Multicast • Line Level Output (Stereo) • General Purpose I/O (4) • RS-232 Serial Port (TTL Level) • Supply Voltage (3.3V) • USB Flash Memory Interface
