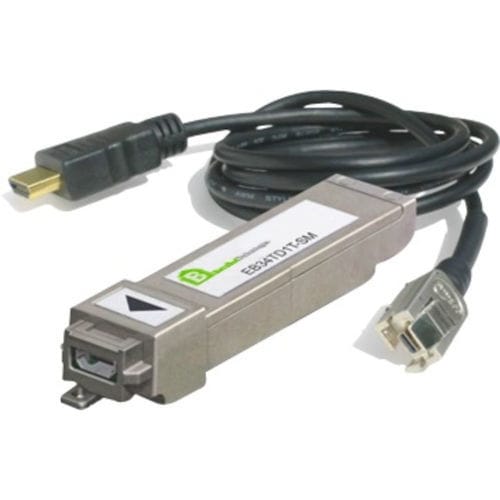

The EB34TD1R-SM is an electrical emSFP receiver module designed to convert HDMI to an SDI signal output without scaling artifacts. Up to 2 channels of PCM audio are supported. The video sfp EB34TD1R-SM is an HDMI1.4 and DVI1.0 to SDI video sfp (emSFP) converter. This video SFP is designed to convert HDMI 1.4 or DVI 1.0 input to an legal smpte SDI (3G, HD,SD-SDI) signal without scaling artifacts. This HDMI/DVI video SFP contains frame buffer to suppress the accumulated low and high frequency jitter (Timing and alignment). Up to 2 channels of HDMI embedded 8 audio PCM channels are re- embedded in the SDI stream. These modules convert from HDMI v1.4/ DVI 1.0 to SDI or from SDI to HDMI v1.4. Converter is built-in inside the Video SFP and standalone. The SFP features a HDMI type D connector with a retention clip that locks with cables EB00CC04-02C (DVI) and EB00CC04-02C (HDMI). SMPTE 292M, and SMPTE 259M SDI Reclocked output to host connector Supported format: 525/625, 720p/1080i (50/ 59.94/60 Hz), 1080p (23.98/24/25/29.97/30 Hz) HDMI Input: 24bit (3x8bit) RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4 BW=80MHz DVI 1.0 Mode (Only video resolution) RGB Range (Full/SMPTE) Up to 8 channel audio embedding (PCM) HDMI 1.4 type D connector HDMI type D plug with retention mechanism available (EB00C04 series) Hot-pluggable Control via serial interface including: EDID reading HDMI interface configuration Audio mapping Voltage & Temperature Monitoring Module Information Low Power Consumption – typical TBD
