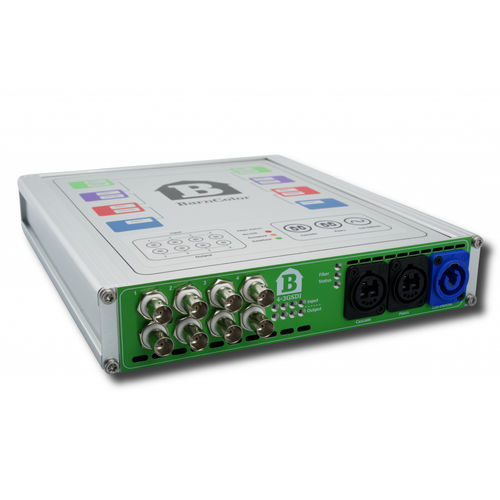

Managed switch BarnColor-3G-SDI series

8 portsfiber opticsindustrial

BarnColor is designed to be a cost-effective solution for sending multiple video signals both directions on a single fiber cable. Up to 4 different colors of BarnColors can be daisy-chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations. Typical use is to link up two locations, short or far, at live-events, studios, arenas, venues and hospital rooms or anywhere you want to transmit multiple video signals in uncompressed formats with a minimum of latency. Cost effective solution: Easy to use (no technical skills required) No configuration or setup procedures Scalable, build your system in all colors Small form factor, or 19 inch (1RU) BNC-Ports: SMPTE 259M, 292M, 372M, 424M, DVB-ASI Multirate reclocking of outputs 270Mbps – 3Gbps Fiber port: Neutrik opticalCON DUO LITE, also compatible with duplex LC SMPTE 297M Physical size: 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”) 1.4 kg Power plug: Neutrik powerCON 20 A 100-240VAC, 15Watt
