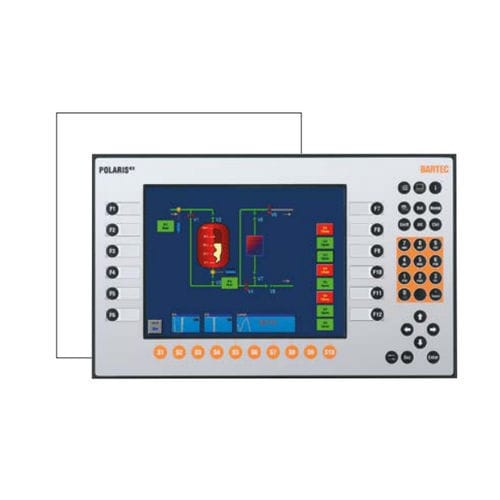

Panel PC with touch screen 17-71V1-90../X000

10.4"800 x 480Intel® Atom

The POLARIS Touch Panel 10.4" is an innovative further development of the POLARIS Panel PCs 10.4". High-resolution displays with LED technology and touchscreen for intuitive as well as comfortable operation are available now in the standard variant. State-of-the-art LED display technology ensures the optimum contrast even with a large viewing angle. The proven LX800 offers sufficient computer capacity for presenting HTML pages or functioning as a remote client. Of course, here too the user can work with the latest “BMS-Graf-pro” Runtime 7 under Windows® XP Embedded, for example for the transmission of projects over the Ethernet, the use of graphics lists or an integrated user administration. Allows a high-performance visual display and operation of the processes directly on site. The front-panel fitting makes mounting easy. On request, the devices are also available as turn-key system solutions in a Stainless-steel enclosure for wall or floor mounting. An intrinsically safe USB interface is available for a USB Ex i memory stick. Intrinsically safe input devices can also be connected. Features LED technology Higher screen resolution Touchscreen Remote desktop solution Presentation of HTML pages Direct connection in hazardous areas Marking Ex II 2G Ex db eb q [ib] IIC T4 Gb Ex II 2D Ex tb IIIC T120 °C Db Ex db eb q [ib] IIC T4 Gb Ex tb IIIC T120 °C Db Ambient temperature 0 °C to +50 °C Variant: Operation -20 °C to +50 °C on request (without external heating)
