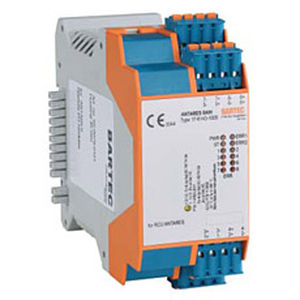

Analog I/O module ANTARES 8AIH

HART8-channelremote

The ANTARES 8AIH Remote I/O Module is suitable for the direct linking of 8 intrinsically safe two-conductor transmitters. NAMUR sensors, optocouplers, wired and unwired mechanical contacts or other actuating elements can be connected with intrinsic safety. All of the I/O module’s transmission channels are conductively connected to each other. The ANTARES 8AI Remote I/O Module is operated by and supplied with power by the ANTARES Rail Control Unit (RCU). A bus rail is not necessary. The hot-swap capability allows the electronic unit to be replaced without disconnecting from voltage even in an explosive atmosphere. Parameters can be set for each channel. Open circuit/short circuit monitoring can be programmed for each channel. See the system description for installation instructions. Features 8 channel analog in HART Ex ia IIC Two-conductor transmitter 8 fold HART Multiplexer Integrated bus rail Installation in ATEX Zone 1/2 or Zone 21/22 Hot-Swap Galvanic isolation between the inputs and the system Line break/short-circuit monitoring Plug-in and codable spring clamps Marking Ex II 2(1) G Ex ib [ia Ga] IIC T4 Gb Ex II 2(1) GD Ex ib [ia IIC Ga] [ia Ga] [ia IIIC Da] IIB T4 Gb Ex II (1) D [Ex ia Da] IIIC Ex II (1) GD [Ex ia Da] [Ex ia IIC Ga] [Ex ia IIB Ga] IIIC Ex ib [ia Ga] IIC T4 Gb Ex ib [ia IIC Ga] [ia Ga] [ia IIIC Da] IIB T4 Gb [Ex ia Da] IIIC [Ex ia Da] [Ex ia IIC Ga] [Ex ia IIB Ga] IIIC Ambient temperature -20 °C up to +50 °C -20 °C up to +60 °C (in conjunction with a distance module)
