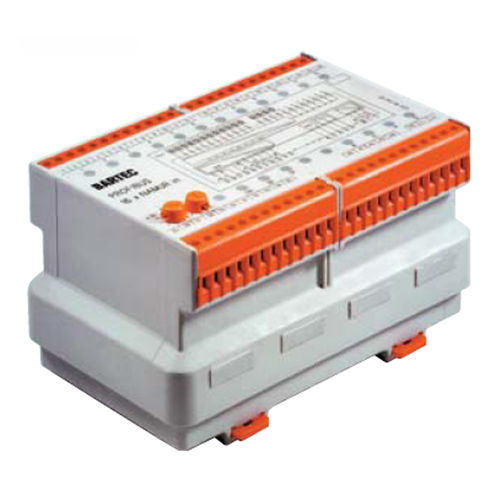

PROFIBUS interface 07-7331-2302/0000

connection

In the Ex-e version, the MODEX digital in module with 16 digital inputs enables 16 binary signals to be fed in. For example, pressure-resistant limit switches or control devices can be imported as signals. The module is connected to the process control system via the PROFIBUS-DP. Coding rotary switches are available for addressing the module. Features 16 channels 24 V inputs Direct control via Ex-limit switches Galvanic isolation LED display EMC according to DIN EN 61000-6-2: 2005, DIN EN 61000-6-3: 2007 + A1: 2011 Programmable address on front panel Marking Ex II 2G Ex db e IIC Gb Ex I M2 Ex db e I Mb Ex db e IIC Gb Ex db e I Mb Class I, Zone 1, IIC A/Ex d e IIC Gb Guidelines/Norms Directive 2004/108/EC Directive 94/9/EC RoHS 2011/65/EU Ambient temperature -40 °C to +60 °C at T4
