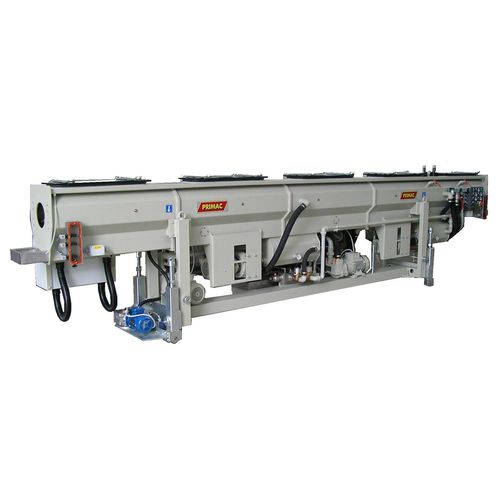

Pipe calibration tank CV series

vacuumstainless steelfor corrugated pipes

Dual or single vacuum chamber sizing tanks for pipes extrusion with a diameter range of between 10 to 1000 mm, in single or dual strand. The sizing tanks are made of stainless steel and are fixed to a steel base, equipped with independent automatic or manual devices for longitudinal and transversal position adjustment on the extrusion line. The machines are equipped with a water system with thermostatic and valve controls to reduce the amount of water in circulation and keep the cooling temperature constant. Water is pressure-sprayed onto the pipe by spray sprinklers assembled on stainless steel bars; the spray angle is adjustable. Spray water is recycled and cleaned through a filter, thus preventing clogging of the sprinklers. An electric motor, connected to a rail fixed to the floor, controls longitudinal movements. Advantages Low water consumption Strong, sturdy frame Top-quality materials used in construction Leading brand components Reliability and maximum process control Facilitate the extrusion process start-up (dual chamber version) Reduce initial waste and downtime (dual chamber version) Allow sizing of non-circular profiles (dual chamber version) Low water consumption Technical features Inspection hatches with toughened glass Inlet and outlet watertight seal around the pipe Simple height adjustment Filter with bypass to keep the water clean Special devices for longitudinal and transversal position adjustment
