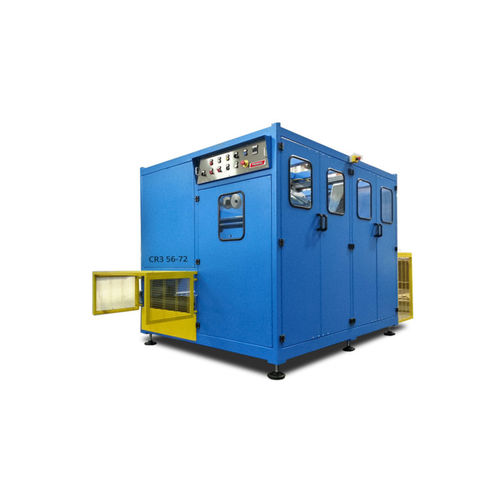

Automatic wrapping machine CR 3 56

for coiled tubingfor corrugated pipes

These film wrapping machines wrap various diameters of corrugated pipe coils produced during the pipe extrusion process. The wrapping machines are designed to handle a range of coils with the following dimensions: Inside Diameter from 250 mm to 350 mm Outside Diameter from 560 mm to 720 mm Coil Thickness from 140 mm to 250 mm The coils coming from the lines are picked up every 15-20 seconds placed on the chuck and wrapped in film. An electronic counter programs the quantity of film to be wrapped around the coil’s circumference. Once the programmed quantity of film has been wrapped around the coil, it is cut and hooked up for the following cycle. The wrapped coil is automatically released from the chuck and ejected from the work area to receive a new coil.
