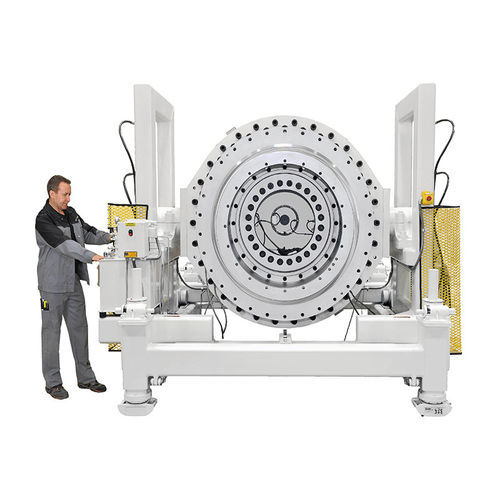

Pipe extrusion line spider

for PVCmultilayercompact

Tooling for mono- and multilayer extrusion Suitable PVC toolings for a great variety of applications Besides the extruder, pipe heads are one of the most important components in a pipe extrusion line. With our spider series, we offer a wide range of pipe heads for the complete range of possible pipe diameters. In addition to the tooling for producing foam core pipe, the PVC multi-layer pipe market demands solutions for different compact versions, such as pipe with a middle layer made from recycled materials or with a high filler content. For these purposes, we have a variety of multi-layer pipe heads in our portfolio. Advantages: *Wide throughput and pipe dimension range thanks to flow channel geometries that are optimally adapted to the sizes of the pipe heads *Best pipe quality, good pipe surfaces and low pipe overweight *Processing of all standard PVC compounds and stabilizer systems *User-friendly, robust design with easy handling in production and set-up cycles *High operational reliability as well as easy maintenance thanks to the use of high-quality materials and improved design Our Offer: *Outer diameters from 6 to 1,600 mm *Different pipe heads with classic single spider concept for diameters up to 710 mm *Twin-strand tooling for diameters up to 250 mm *Four-strand tooling for diameters up to 50 mm *Flow channel surfaces are chrome-plated as standard (option: stainless steel or multiple chrome-plating) *Support or carriage systems adapted to pipe head size and weight *Optimized heating capacity *Option: Thermal centering and heating tape insulation
