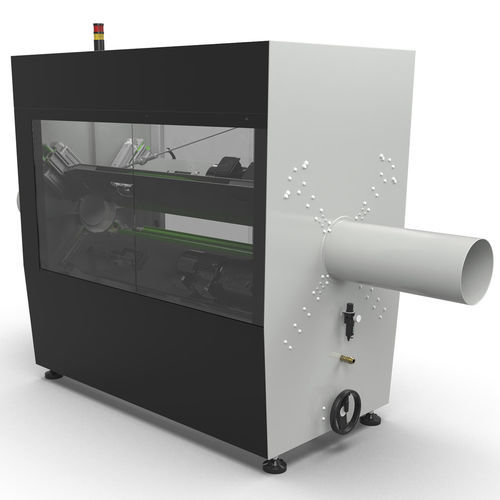

Pipe extrusion line caterpillar haul-off pullStream

Belt and caterpillar haul-offs for PO and PVC pipe extrusion Integrated control via touch screen Depending on the application and pipe size, pullStream belt or caterpillar haul-offs are available, which are controlled via an integrated touch screen and fit perfectly into the line. Production of customized versions is also possible. Specially adapted versions can be supplied for special applications such as FDC (fast dimension change). Advantages: *Robust design *Belts and caterpillars driven individually by 3-phase motors, optionally as servo drives *High haul-off forces due to high motor torque and pressure cylinders *High synchronization accuracy with coordinated drive motors *Back pressure control for thin-walled pipes *Electric adjustment of all caterpillars to pipe diameter *Upper caterpillars with pendulum support and pneumatic contact pressure *Integrated control via touch screen For pipes from 16 to 800 mm Multiple caterpillar haul-offs with 3, 4 or 6 caterpillars with V-shaped rubber studs Bottom caterpillars manually/electrically adjustable Start-up aid mounted on haul-off for saving space and synchronizing via pilot frequency For pipes from 800 mm upwards Multiple caterpillar haul-offs (6-14) with V-shaped rubber studs Electrically adjustable caterpillars at top and bottom Start-up aids up to 180 kN tractive force, synchronized with haul-off via pilot frequency Deflection rollers and rope guides of start-up aids on tilting frame at the outlet end
