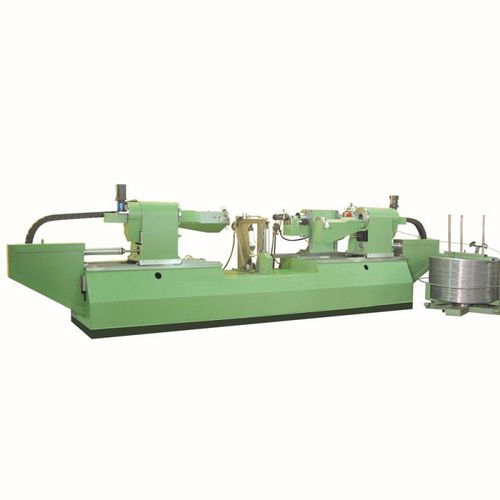

Wire forming machine BML

CNC

Fabrication program: wire forms in wire Wire diameters: 1,0 - 8,0 mm (soft wire) Ideal equipment for the medium and large-scale production of parts in 3D, with developed length that can be relatively long and with potentially numerous symmetrical or asymmetrical bends, for which the perfect straightness of the wire is an absolute constraint. These machines use wire in coils, perform a perfect straightening, using a rotary system, and transfer the straightened-and-cut bars to a bending station. Two independent heads work simultaneously to bend or coil the wire from both ends towards the center, with standard tooling, multi-radius if necessary. The wire remains fixed during bending operations, which can be performed in 3D. Additionally, it is possible to make completely different parts one after the other, without production stop. A specific system allows to reduce down to 70mm the minimal distance between two bends in the middle of the parts. It is also possible to only use one of the two heads, the machine will then feed the wire into a “step by step” mode. The 70mm minimum lenght is then not anymore a constraint under such an operating mode.
