CNC punching machine DCME
forming

CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
CNC punching machine
Add to favorites
Compare this product


Characteristics

Control
CNC
Associated function
forming

Description

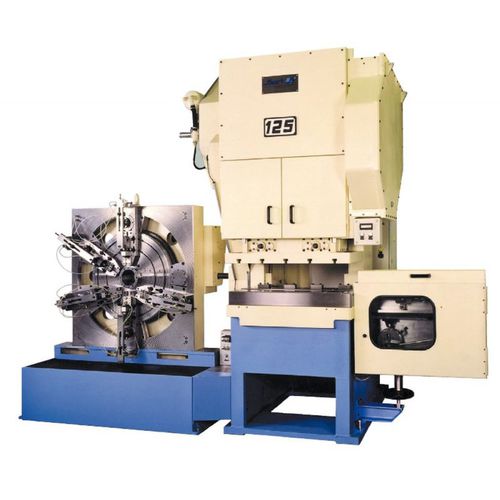

Fabrication program: stamped wire forms in wire and strip Wire diameters: 0,5 - 8,0 mm Presses : 5 - 125 t DCME machines are fitted with at least 3 independent servomotors, supplied by Bosch Rexroth: one for the material feeder, one for the press, the third for the main gear which drives the slides. Other movements can also be fitted with additive servos. Following competitive advantages are offered to the user: Minimal feeding time, allowing bending operations to be executed at maximum speed. Bending angle to be set up to 360° Press cutting speed and positions to be optimized, thereby increasing feasibility of parts (for example to let a deep punching go through the tooling) and sharpening frequency to be reduced. Tools to remain under constant monitoring ; the system checks at all times the power consumption of each motor, compares the data to minimum and maximum values for the part produced and stops the machine if any data go out of tolerances. Mechanical chain to be simplified, brings ease of maintenance and lowered frequency and costs

VIDEO
