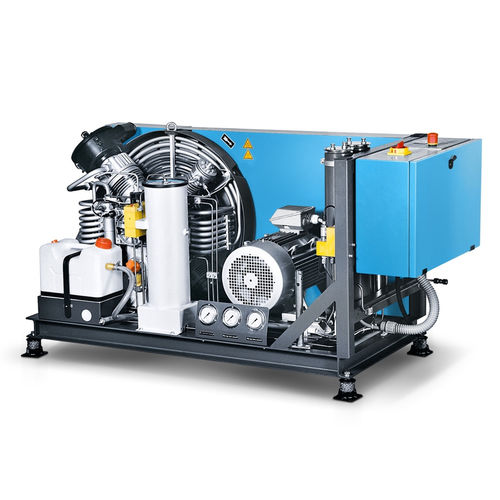

Piston compressor KAP-H
breathing airelectrically-poweredstationary

Piston compressor - KAP-H - BAUER KOMPRESSOREN GmbH - breathing air / electrically-powered / stationary
Piston compressor - KAP-H - BAUER KOMPRESSOREN GmbH - breathing air / electrically-powered / stationary
Piston compressor - KAP-H - BAUER KOMPRESSOREN GmbH - breathing air / electrically-powered / stationary - image - 2
Piston compressor - KAP-H - BAUER KOMPRESSOREN GmbH - breathing air / electrically-powered / stationary - image - 3
Piston compressor - KAP-H - BAUER KOMPRESSOREN GmbH - breathing air / electrically-powered / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
breathing air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
compact, high-pressure, horizontal
Pressure

330 bar
(4,786.25 psi)

Flow

450 l/min, 540 l/min, 680 l/min
(118.88 us gal/min, 142.65 us gal/min, 179.64 us gal/min)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Length

165 cm
(65 in)

Width

71 cm
(28 in)

Height

85 cm
(33 in)

Weight

370 kg, 385 kg
(815.7 lb, 848.8 lb)

Description

Ideal for use in professional applications: High free air delivery in continuous operation Perfect for demanding requirements at sea: Intercoolers and aftercoolers made from rust-free stainless steel. For high corrosion resistance Fully automatic compressor control: B-CONTROL MICRO Little space required: Thanks to compact horizontal design Thanks to a low centre of gravity and durable block design, the compressors in the KAP-H series can be relied upon to operate safely even at very oblique angles. They are thus the ideal choice for the challenging operating conditions encountered in civil and military shipping or in in-vehicle applications. The installed compressor blocks in the IK 15.1/150/180 series have been designed for the most demanding professional applications and dimensioned for a service life in excess of 30,000 operating hours. With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces. Furthermore, wear-resistant piston rings in the final stage minimize running costs. The compressor block is both efficient and reliable. Stainless steel cooling ribs on the pipe cooler provide the basis for particularly efficient cooling and thus very long service life. The compressor stages, which are located on sides of the compressor blocks, are the key to optimum smooth running and high efficiency. The free-standing cylinders are easy to access and maintain.
