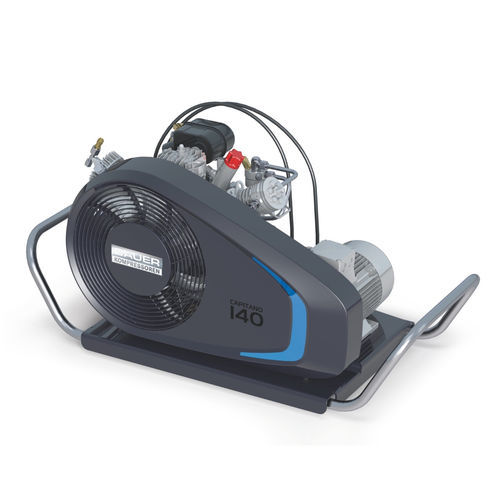

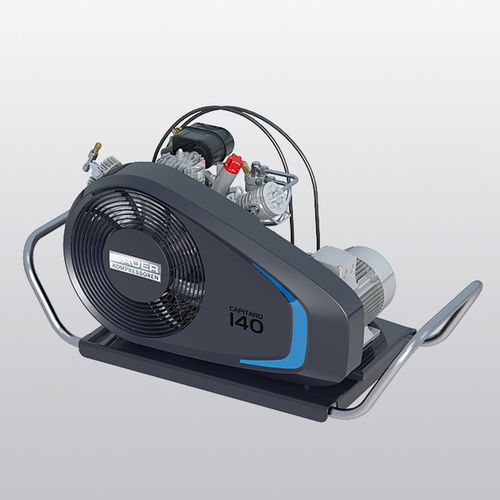

Piston compressor CAPITANO 140 series
breathing airgasoline enginemobile

Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 2
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 3
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 4
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 5
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 6
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 7
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 8
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 9
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 10
Piston compressor - CAPITANO 140 series - BAUER KOMPRESSOREN GmbH - breathing air / gasoline engine / mobile - image - 11
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
breathing air
Power source
gasoline engine
Portability
mobile
Lubrication
lubricated
Application domain
industrial
Voltage
400 V
Other characteristics
compact, high-pressure, rugged, light, low-pressure, three-stage
Pressure

Min.: 90 bar
(1,305.34 psi)

Max.: 330 bar
(4,786.25 psi)

Flow

140 l/min
(36.98 us gal/min)

Power

3 kW, 4 kW
(4.08 hp, 5.44 hp)

Length

115 cm
(45 in)

Width

59 cm
(23 in)

Height

55 cm
(22 in)

Weight

95 kg, 102 kg
(209.4 lb, 224.9 lb)

Description

Tough: Thanks to an incredibly durable driving gear. Suitable for short-term operation and continuous service Durable and robust: Three-stage construction and industrial roller bearings maximise the service life of the units Protected against corrosion: With an ultra-lightweight aluminium chassis for the best possible protection against corrosion Reliable lubrication: With generously dimensioned low-pressure oil pump The CAPITANO 140 by BAUER KOMPRESSOREN has been developed specifically for advanced professional applications. Incredible durability, compact dimensions and low weight count here in equal measure. Furthermore, the first stage and the high-pressure final stage of the CAPITANO 140 feature piston rings made from a new high-tech plastic which are virtually wear-free. A vibration-reducing motor rocker design optimises smooth running. Thanks to the extensive range of BAUER accessories, the compressor can be customised to meet all manner of different requirements and intended uses in next to no time. The BAUER IK 100 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios. P 21 filter system When used in conjunction with original BAUER filter cartridges, the P 21 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated.

Catalogs

No catalogs are available for this product.

See all of BAUER KOMPRESSOREN GmbH‘s catalogs
