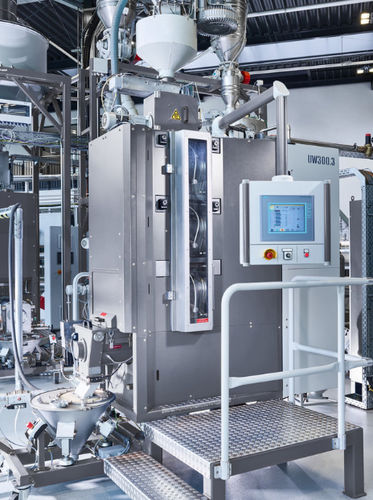

Designed to grind britle to hard products to a narrow particle size distribution maximum optimization features, the UW 300 offers:
Size reduction by shearing forces and pressure
Narrow particle size distribution with minimal dust content
Minimal mechanical impact and temperature increase of product
Low specific energy consumption
Customized roll material and surface
Easy access for maintenance and cleaning
High durability of rolls
Modular machine setup with 1, 2 or 3 grinding stages
Roll diameter 230mm, roll length 300, 600, 900mm
Water cooled / heated rolls optional
Precise manual gap adjustment system
Stainless steel for all product contact parts
Dust tight grinding chamber
Double roll feeding device
Magnetic separator
Aspiration connection
Food
Coffee
Grains
Herbs/Spices
Nuts
Oi Seed
Sugar
Sugar Substitutes-Xylitol, Maltitol, Sorbitol...
Non-Food:
Chemical
Fertilizers
Minerals
Organic Fertilizer
Super Absorbent Polymers
Urea
UW 300.1 - one stage
UW 300.2 two stage
UW 300.3 - three stage
Patented automatic roll gap adjustment and gap monitoring system available
Each roll is independently driven for optimal adjustment capability
Bearing temperature and vibration sensors
Active cleaning of grinding chamber
Inerting of the grinding chamber is possible
ATEX conformity
