- Hydraulics - Pneumatics
- Pipe, Tube and Fitting
- Hydraulic fitting
- Baum Kunststoffe GmbH

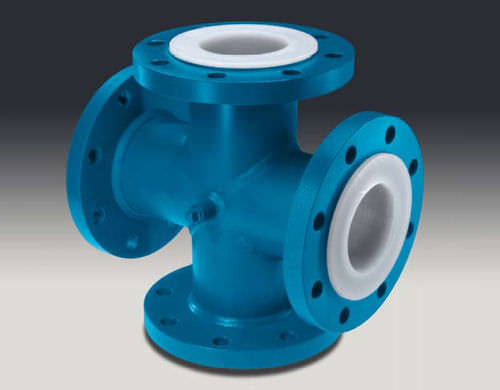

Hydraulic fitting flangecrossPTFE
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- flange
- Configuration
- cross
- Material
- PTFE
- Other characteristics
- PTFE-lined
Description
Lining-Materials:
up to diameter nominal DN1 100 (one-piece): PFA (virgin or conductive)
ab Nennweite DN1 125 (two-piece): PTFE (virgin or conductive)
up to diameter nominal DN1 300 (two-piece): PP
Different lining thicknesses and flange designs on request.
Flange design
fix-loose-fix-loose
fix-fix-fix-fix
loose-loose-loose-loose
Other pressure rates:
PN 16
PN 25
PN 40
Material: carbon steel and stainless steel
special features: earthing studs, earthing lugs, flange stopper, final painting
Catalogs
No catalogs are available for this product.
See all of Baum Kunststoffe GmbH‘s catalogs
