Linear actuator Type 200 KS serieselectriclead screwDC
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- lead screw
- Motor
- DC
- Other characteristics
- pull
- Stroke
Min.: 272 mm
(10.709 in)Max.: 375 mm
(14.764 in)- Force
Min.: 2,700 N
Max.: 6,000 N
- Speed
Min.: 6.8 mm/s
Max.: 27.2 mm/s
Description

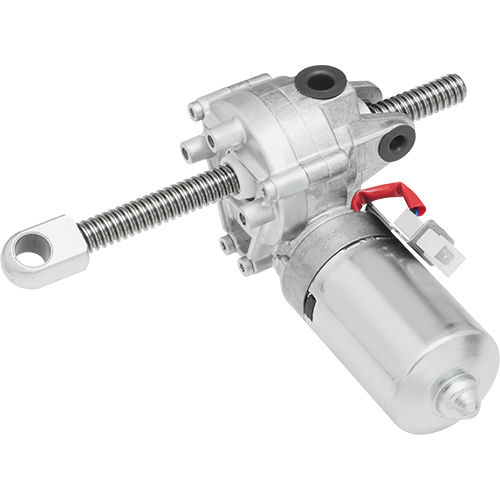

Actuator Type 200 KS
Very strong DC actuator with worm gear drive up to 1500mm stroke length and 6000N push/pull force. Pushing lead screw with different fixing points. Very quiet operation thanks to a solid die cast case. Suitable for controlled inhibited operation with max. current 12 Amps. Additional external end switches preferred.
