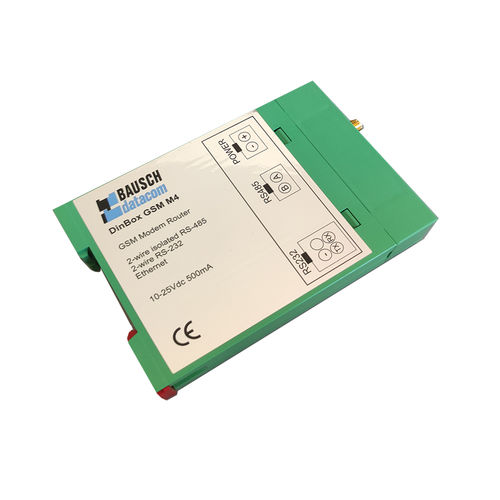

Industrial modem DinBox GSM M4

dataGSMGPRS

LTE Cat. 1 / GPRS modem router RTU The DinBox GSM M4 modem is a versatile communication device designed to provide a flexible data communication solution for an industrial environment. The DinBox GSM M4 modem contains a number of options to accommodate different communication speeds, power supplies and interfaces. This modem has an extended TCP/IP stack implementation, and is able to connect non-IP devices to an IP network over an Ethernet or WAN link. The modem can also act as SCADA RTU mapping IEC 60870-5-104 objects to Modbus registers. The DinBox GSM M4 is a pocket industrial DINrail modemrouter and RTU. It allows datacommunication over LTE Cat. 1 for transparant communication with electricity meters, SCADA IEC 60870-5-104/Modbus mapping and routing. The costeffective solution is the ideal tool to integrate non IP devices in your network ovr 4G. Highlights - Industrial GPRS RS-485 modem - Praxis Modem Management - Watchdog reset - Applications: TCP/IP and non TCP/IP meter reading CSD Data meter reading Specifications - Dimensions: 107.5x75x22.5mm (LxHxW) - Power Supply: 9-25 Vdc - User interface: Ethernet Https GUI configuration - Communication: Option 1: HL7692 – FDE band LTE Cat-1 with dual band GSM/GPRS/EDGE fallback Option 2: RC 7620 – LTE Cat. 1 with dual band GSM/GPRS/EDGE fallback LTE Cat. M1 NB IOT2 on demand - SIM card holder internally External antenna on SMA connector - Features: Routing IEC 60870-5-104 / Modbus mapping Configuration: local and remote Data transfer: MQTT(S) 3.1 Data transfer: Modbus RTU & Modbus TCP Data transfer: IEC 60870-5-104 Firmware update: local and remote RTC Graphical User Interface available DINrail - Certification: CE
